Product Description

Kits

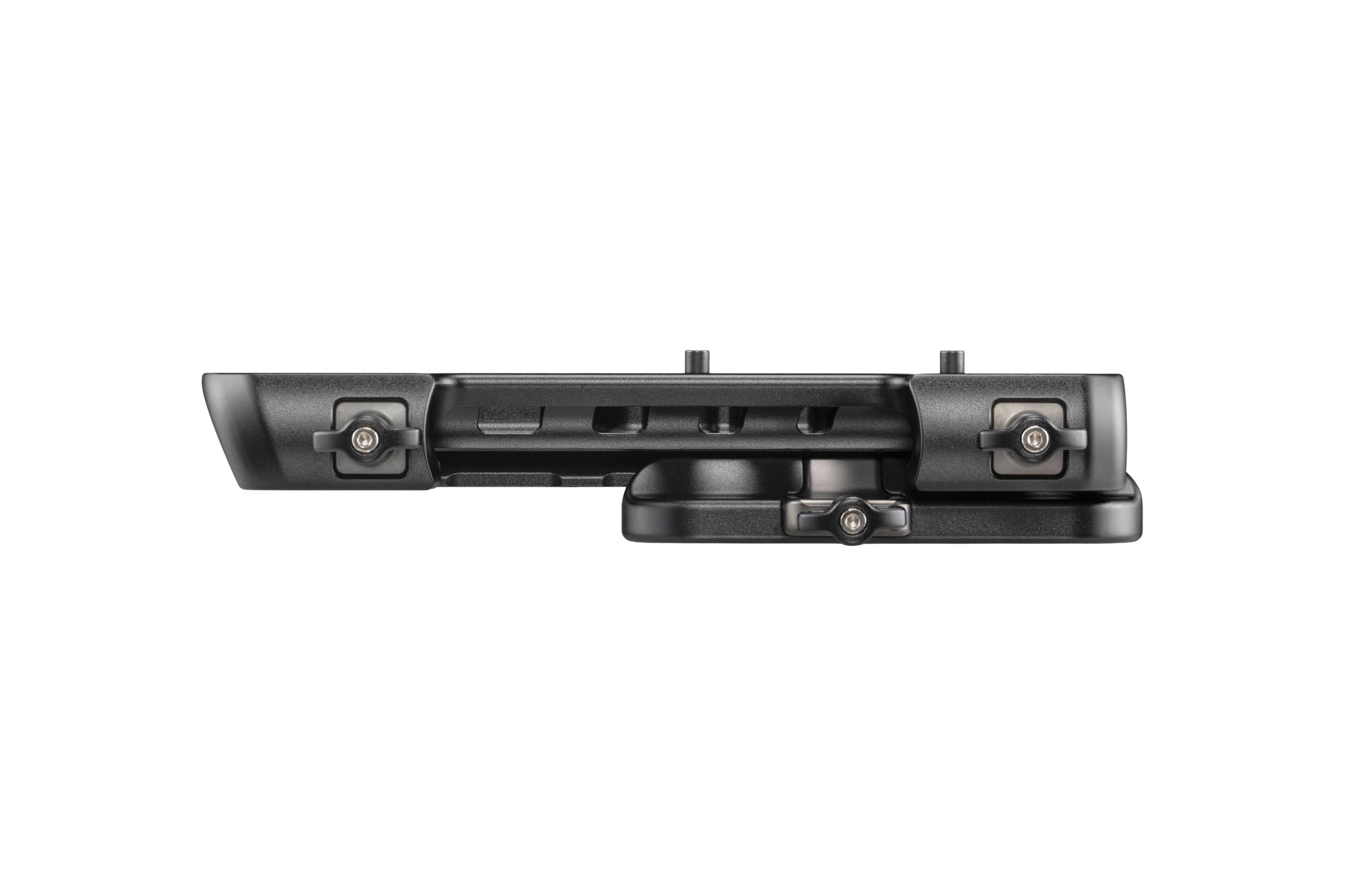

A00310 | Baseplate System (Sony VENICE, VENICE 2)

Low-profile and compatible with any make of bridge plate that uses ARRI Standard height, this ARCA Baseplate design keeps the center of gravity as low and spread out as possible, allowing you to easily add shoulder pads or other accessories while maintaining optimal stability. Lens-centered Front and Rear Rod Clamps allow you to use longer rods or mount additional accessories to the back of your rig. A double-locking system on the Rod Clamps provides incredible friction to prevent torque and rotation from your lens motors. Intuitive access holes allow you to convert to a Rialto 2 setup without removing the Baseplate. The Base Plate features an intuitive wedge-clamp locking system with a thumb-screw for added security. Comes with ⅜”-16 mounting points to attach the Bridge Plate.

Included Items: ARCA Baseplate (Sony VENICE, VENICE 2), and ARCA Base Plate

Specifications:
Weight: 759 g (1.7 lbs)
Dimensions: 400 x 50 x 147 mm (15.7 x 1.97 x 5.8 in)


A00306 | Baseplate System (Sony Rialto, Rialto 2)

Lens-centered ARCA Baseplate (Sony Rialto, Rialto 2) and Base Plate with the same low-profile footprint and optical center as their VENICE 2 counterparts. Designed to integrate seamlessly with the VENICE 2 Baseplate, Riser, Rods, and Camera Dovetails while maintaining the same low-profile footprint and optical center.

Included Items: ARCA Baseplate (Sony Rialto, Rialto 2), and ARCA Base Plate

Specifications:
Weight: 431.5 g (1 lbs)
Dimensions: 100 x 116 x 32 mm (3.9 x 4.6 x 1.3 in)

A La Carte

A00275 | ARCA Baseplate (Sony VENICE, VENICE 2)

The ARCA Baseplate keeps the center of gravity low, allowing you to add shoulder pads or other accessories while maintaining optimal stability. Lens-centered front and rear Rod Clamps ensure extra security and the ability to mount accessories to the back of your build. A high-friction, double-locking system on the rod clamps prevent torque and rotation from your lens motors. Intuitive access holes allow you to convert to a Rialto 2 setup without removing the Baseplate. The elegant cutout pattern is lightweight, but strong.

Specifications:
Weight: 442 g (1 lbs)
Dimensions: 175 x 130 x 22 mm (6.9 x 5.1 x 0.9 in)

A00276 | ARCA Baseplate (Sony Rialto, Rialto 2)

Lens-centered and fully integrated with the VENICE 2 Baseplate. Easily detach and reattach while maintaining the same low-profile footprint and optical center.

Specifications:
Weight: 207 g (0.5 lbs)
Dimensions: 54 x 130 x 22 mm (2.1 x 5.1 x 0.9 in)
