Professional WC Pro Gold Mount 4-Pin XLR Right Angle Adapter - Perfect for Broadcast, Studio, and Live Sound Equipment Connectivity

Product Description

IN STOCK Complete purchase by 3pm CST and order will ship same business day.

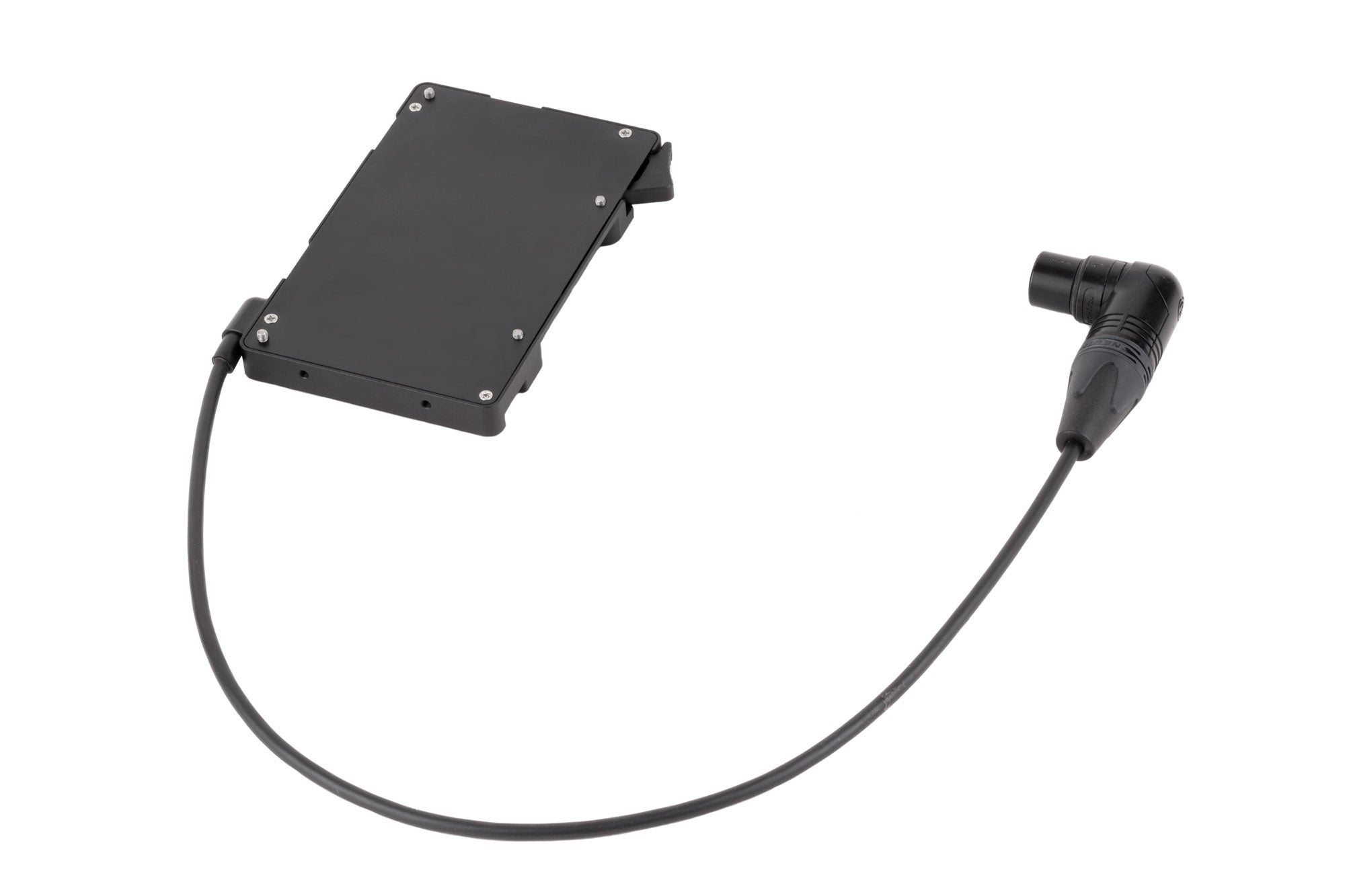

WC Pro Gold Mount (4pin XLR Right Angle) is a metal power plate, created in partnership with Anton Bauer, and has a rugged aluminum body for durability and secure battery mounting and a right angle 4pin XLR. Compatible with Digital Bolex, Blackmagic Studio Camera, Sony F55/F5, Canon C500mkII and many more. Features 3x D-Taps for accessory power at battery voltage (12-16V), a digital fuse with reset button, rear cover plate, and captive mounting screws.

Should the user exceed the set current for accessories, only the accessory outputs are disabled leaving the camera running normally. Once the current load has been reduced by either removing accessories or reconfiguring, the reset button can be pressed to enable accessory power again.

16" cable exits the right side of the plate allowing easy insertion into the camera. Custom lengths available up to 6ft for no additional charge. Additional lengths available as needed. Send us an email with your requirements:

For an adjustable mount system attached to rods, use the or paired with the appropriate Rod Clamp: , , and .

The orientation of Right Angle XLR connectors can be repositioned following

Specifications:
Weight: 186g (0.41 lbs)
Dimensions: 146.1 x 76.2 x 19.1 mm (5.75 x 3 x 0.75 in)
