ARRI LPL Mount v2 Adapter for Sony VENICE, VENICE 2 & BURANO Cameras - Professional Cine Lens Compatibility for Film Production & Cinematography

Product Description

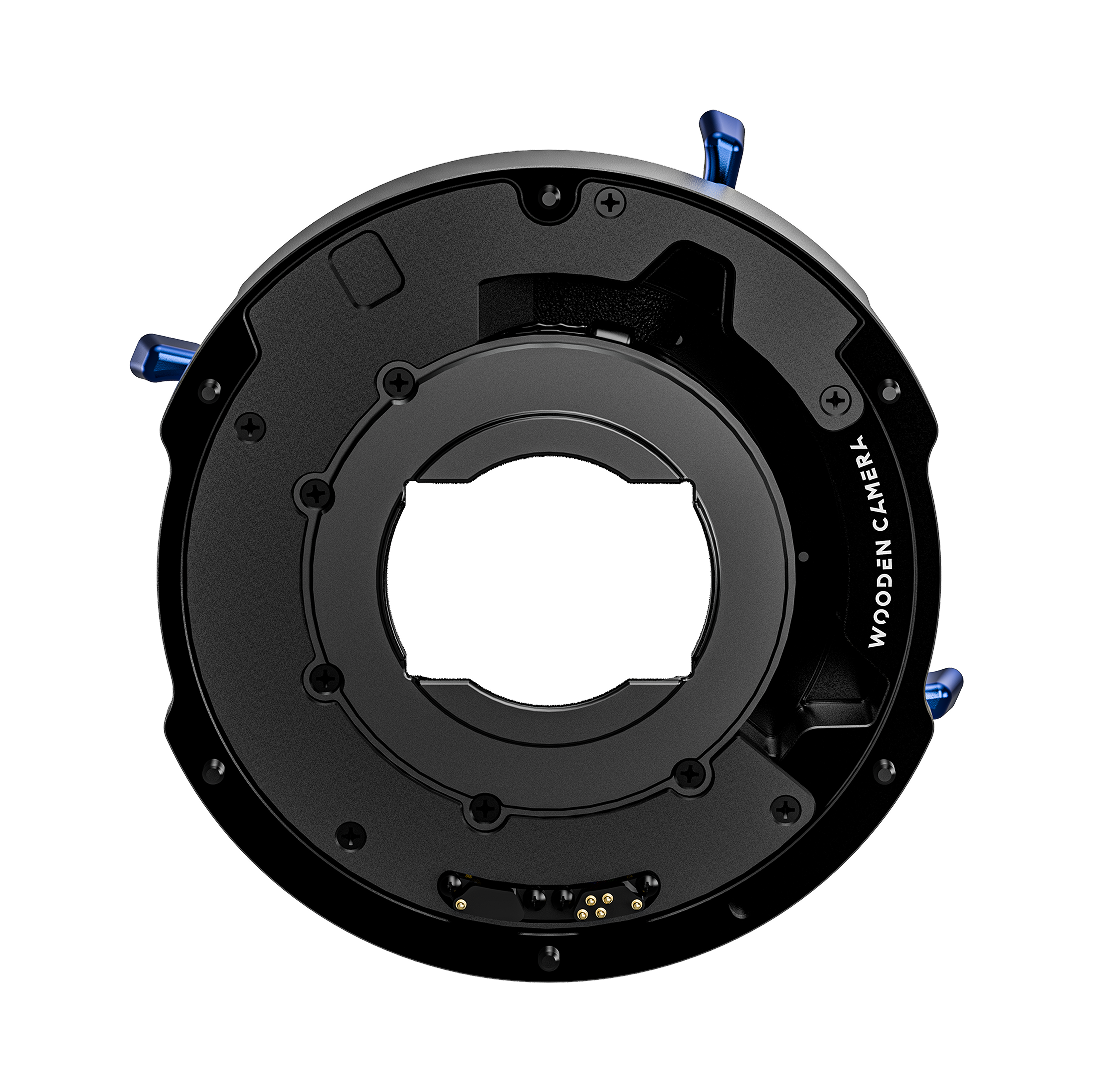

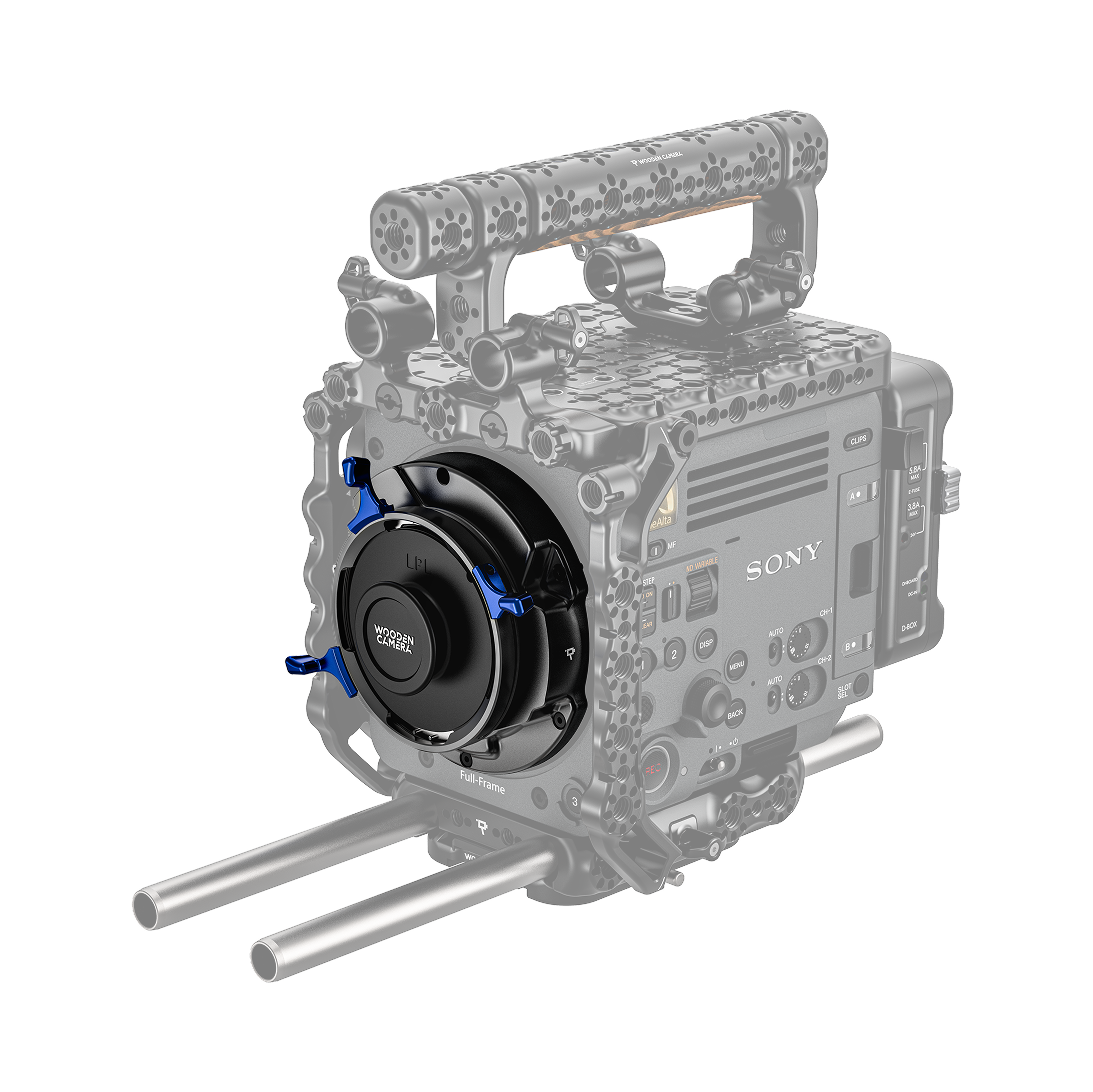

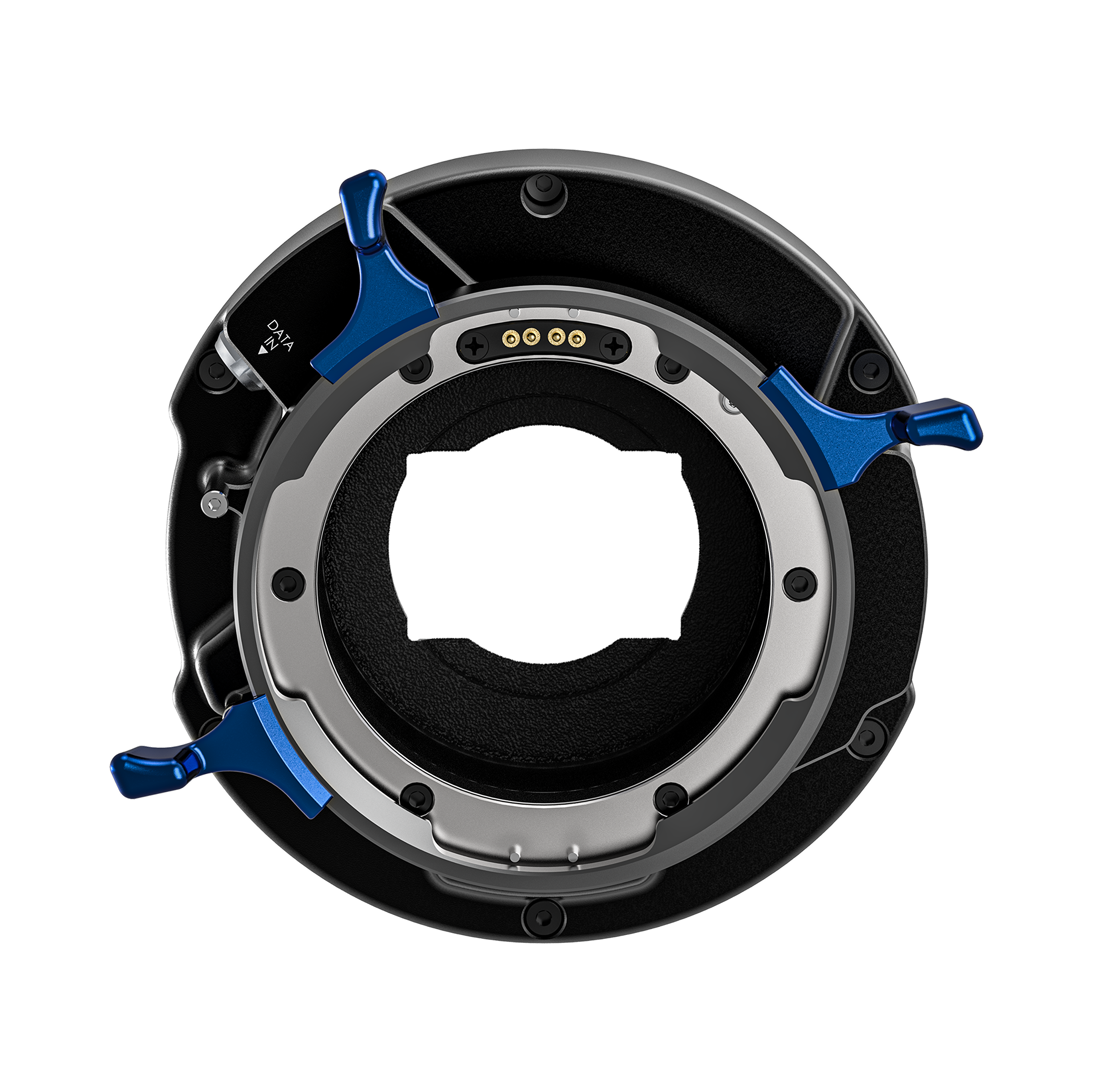

The ARRI LPL Mount for Sony VENICE, VENICE 2, and BURANO allows seamless integration of ARRI Signature Lenses with Sony’s high-end cinema cameras, enabling direct lens pogo connections for full metadata pass-through. This premium mount transmits internal /i lens data from smart lenses or translated external lens data from remote focus motor drivers directly to the camera.

For external data transmission, simply connect the LDT-R2 or LDT-V2 from DCS to record real-time lens values directly into the metadata headers of the camera footage, making any lens a smart lens.

The mount features high-precision manufacturing and accurate flareage, with flocked aluminum construction to minimize unwanted reflections and flare artifacts. It is factory-calibrated to industry standards and includes a shimmable design for fine-tuning flange depth. By removing the six socket head screws around the collar, users can separate the flange from the mount and insert color-coded shims of various thicknesses:

• Silver – 0.0127mm (0.0005”)
• Amber – 0.0254mm (0.001”)
• Purple – 0.0381mm (0.0015”)
• Red – 0.0508mm (0.002”)
• Green – 0.0762mm (0.003”)
• Tan – 0.1016mm (0.004”)
• Blue – 0.127mm (0.005”)

Back focus adjustment should be verified using collimation tools.

For added versatility, the ARRI LPL to PL Adapter is fully compatible, allowing users to quickly switch from standard PL lenses to LPL lenses while maintaining full data pass-through.

The included LPL port cap protects the camera sensor when no lens is mounted, ensuring optimal performance in any shooting environment.

Works with:

• ARRI LPL Lenses with Impression Filters
• ARRI LPL to PL Adaptor
• Leitz Hugo Lenses
• LDT systems from DCS



Specifications
Weight: 316 g (0.7 lbs)
Dimensions: 113 x 126 x 47mm (4.5 x 4.97 x 1.85 in)
