Fujifilm GFX to ARRI LPL Mount Adapter - Compatible with GFX Medium Format Cameras - Perfect for Cinematic Videography & Professional Photography

Product Description

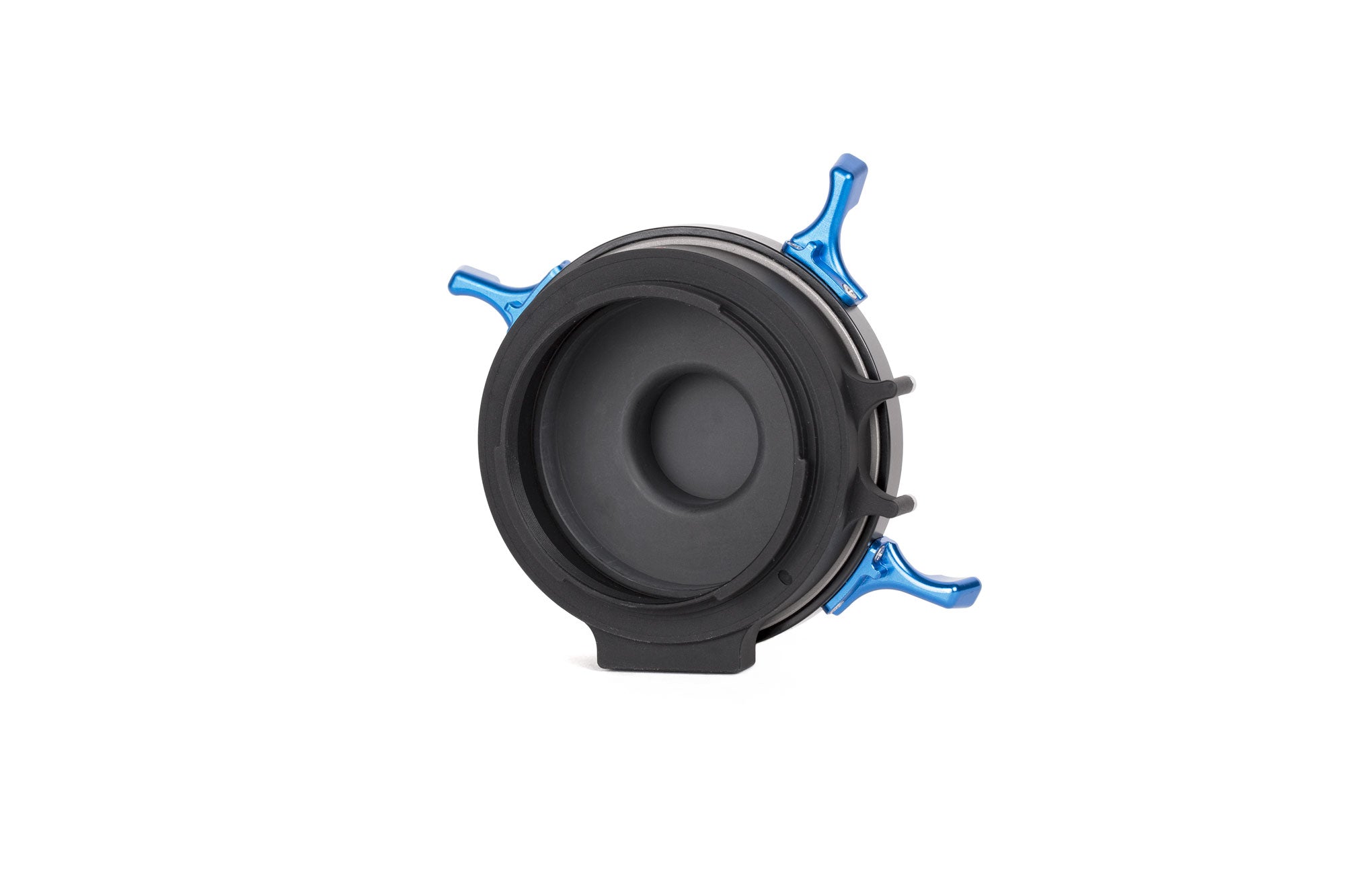

Fujifilm G Mount (GFX) to ARRI LPL Mount Adapter allows ARRI LPL Signature Prime Lenses to be used with Fujifilm G Mount (GFX) cameras.

Mount includes an integrated foot with 1/4-20 threaded hole for attaching to a tripod eliminating strain on the camera. The support foot can also be attached to the natively using the vertical support hole and the . LPL Cap included to prevent dust from entering sensor area when lens is not attached.

In our factory, we set the flange focus using collimation tools. You only need to adjust the shims should you find that your camera is out of calibration. The adapter is shimmable by loosening six socket cap screws around the collar area, separating the two sections, and adding color coded shims of various thickness. Back focus should be checked using collimation tools or a wide lens focused to infinity.

is also compatible, allowing easy change from standard PL lenses to LPL lenses. LPL Mount is passive and does not communicate lens data to the camera.

Shim Set (stackable to achieve necessary thickness)
Silver .0127mm (0.0005")
Amber .0254mm (0.001")
Purple .0381mm (0.0015")
Red .0508mm (0.002")
Green .0762mm (0.003")
Tan .1016mm (0.004")
Blue .127mm (0.005")

Specifications:
Weight: 223g (0.5 lbs)
Dimensions: 81.8 x 81.8 x 38.1 mm (3.2 x 3.2 x 1.5 in)
