Canon EOS C400 Core Accessory System - Professional Camera Rig, Mount & Stabilizer for Filmmaking & Cinematic Shots | Perfect for Vlogging, Documentary & Studio Production

Product Description

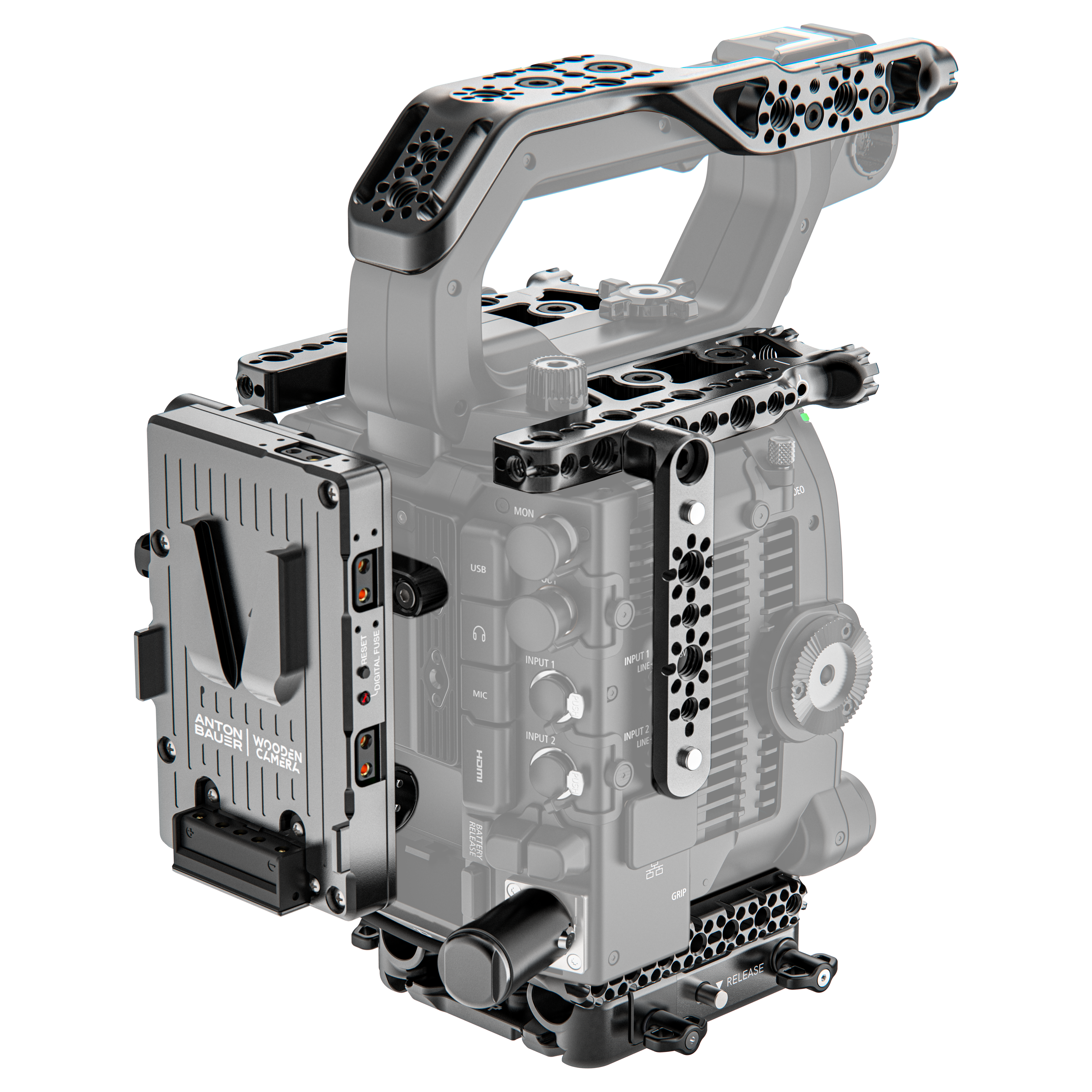

The Core Accessory System for Canon EOS C400 provides an abundance of accessory mounting points while maintaining a compact setup.

This cage system contains a Base Plate and Riser System that positions the camera at the appropriate optical height for mounting accessories. The ARCA system allows for quick transitions between Steadicam, shoulder, or tripod workflows.

The Left and Right Top Plates are symmetrical and can be used on either side for additional mounting points.

The Top Handle Cheese Plate attaches seamlessly to the EOS C400 handle for maximum comfort, adding mounting points on the top and side. The cutout design allows easy access to the EOS C400 hot shoe for mounting the camera’s shotgun microphone shock mount.

The NATO Side Rail mounts to the Top Plate near the rear of the camera without touching the EOS C400’s handle, providing additional mounting points and the ability to use NATO clamp accessories. Patented anti-twist safety pins ensure secure mounting.

The attaches directly to the back of the camera without rods, delivering battery power to the camera via a 4-pin XLR connector while maintaining access to the battery compartment for hot-swapping the internal BPU battery. The DC Input on the camera-right side can be used to hot-swap between block and onboard batteries. 3x D-Tap ports provide accessory power at battery voltage. A digital fuse, when tripped, cuts off accessory outputs while leaving the camera powered.

Included Items:

Specifications:
Core Accessory System for Canon EOS C400 (Gold Mount): Weight: 1070 g (2.4 lbs)
Dimensions: 192 x 160 x 110 mm (7.6 x 6.3 x 4.3 in)
Core Accessory System for Canon EOS C400 (V-Mount): Weight: 1080 g (2.4 lbs)
Dimensions: 192 x 160 x 110 mm (7.6 x 6.3 x 4.3 in)
